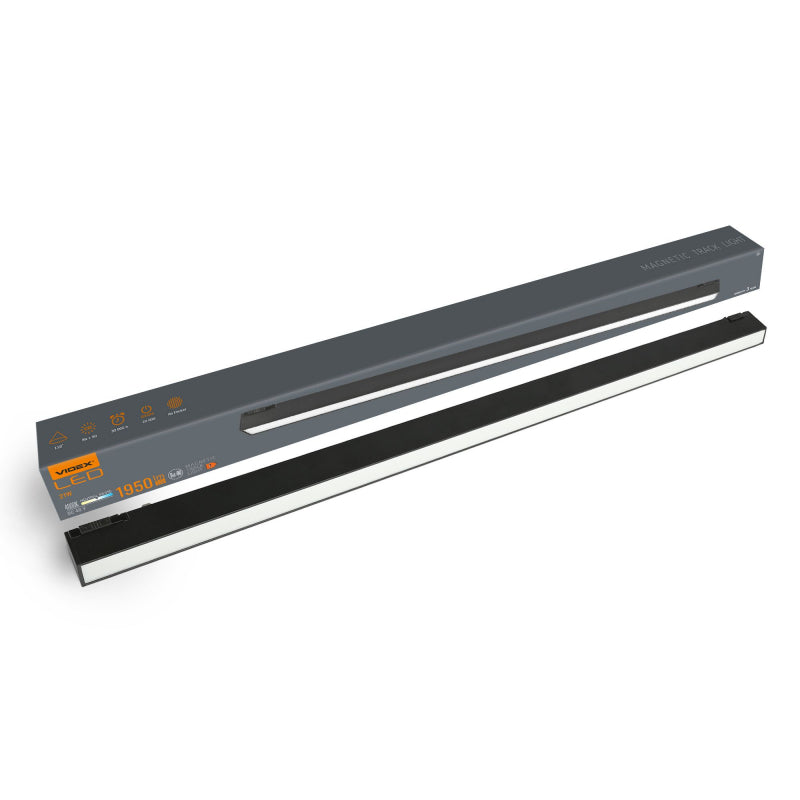

The VIDEX LD460B is a slim 21W linear LED module for even general lighting on a 48V magnetic track system. It produces 1950 lm of neutral white 4000K light with a 110-degree beam and high CRI > 90 colour rendering, making it suitable for homes, offices, shops, galleries and display areas.
The black aluminium-alloy housing clips into a compatible VIDEX slim magnetic track and can be repositioned as the layout changes. The integrated LED operates without visible flicker, has a rated lifetime of 30,000 hours and is covered by a 3-year warranty.
Compatibility notice: This luminaire is designed for VIDEX VL-TRMS-FT series modular tracks and requires a compatible 48V VL-TRMS-P series power supply, both sold separately. Do not connect the luminaire directly to a 220-240V mains supply. Installation must be completed with the power switched off by a qualified specialist.
Technical specifications
- Model: VL-TRMS-LD460B
- Power: 21 W
- Luminous flux: 1950 lm
- Colour temperature: 4000K, neutral white
- Beam angle: 110 degrees
- Colour rendering: CRI > 90
- Rated voltage: DC 48 V
- Housing colour: Black
- Ingress protection: IP20, indoor dry areas
- Dimmable: No
- Dimensions: 25 x 600 x 24 mm
- Rated lifetime: 30,000 hours
- Warranty: 3 years
Complete your track system
Compatible only with the VIDEX VL-TRMS 48 V slim magnetic-track system. Do not connect a 48 V track or luminaire directly to a 220–240 V mains supply.
- Compatible tracks: 1 m surface track (VL-TRMS-FTS10B), 2 m surface track (VL-TRMS-FTS20B), 2 m recessed track (VL-TRMS-FTR20B)
- Required power supply: 100 W power supply (VL-TRMS-P100B), 200 W power supply (VL-TRMS-P200B)
